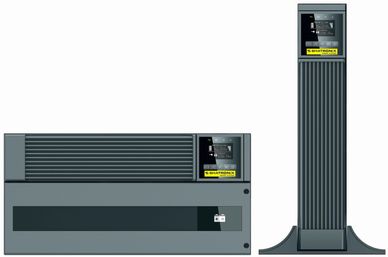

MiniPro RT 1-3 Kwatts UPS S/L versions
MiniPro RT 6 & 10 Kwatts UPS S/L Optional versions
MiniPro RT 6 & 10 Kwatts UPS S/L versions
Mini Pro RT offers 1 , 2 & 3 Kwatts single phase UPS with both versions
-S version for standard backup time batteries of maximum 30 mins
- L version for Long Backup time batteries for few hours

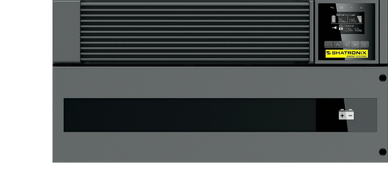

MiniPro RT 6 & 10 Kwatts UPS S/L versions
MiniPro RT 6 & 10 Kwatts UPS S/L Optional versions
MiniPro RT 6 & 10 Kwatts UPS S/L versions
Mini Pro RT offers 6 & 10 Kwatts single phase UPS with both versions
-S version for standard backup time batteries of maximum 30 mins
-L version for Long Backup time batteries for several hours
- redundant Parallel configuration up to 4 units for higher Reliability and extended MTBF
MiniPro RT 6 & 10 Kwatts UPS S/L Optional versions
MiniPro RT 6 & 10 Kwatts UPS S/L Optional versions
MiniPro RT 6 & 10 Kwatts UPS S/L Optional versions

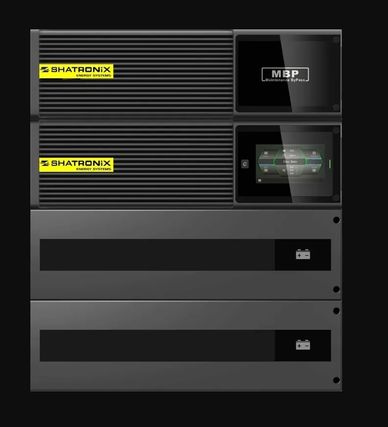

As options to the standard configuration
Mini Pro RT offers an Optional Manual Bypass Switch module and extra battery cabinets for extended back up time
MiniPro RT Single Phase UPS 1 - 10 Kwatts
Description
The Mini Pro RT is a Single Phase high end rack / tower case UPS, designed in 2 and 3 U configurations with Unity Power Factor output.
MiniPro RT provides ratings 1, 2, 3, 6 & 10 Kwatts, with its S and L versions for standard back up time of few minutes , to Long back up time that extends to several hours supporting Telecom, Medical, Data centers, Banking, Process control,....
Features
· DSP Control for best performance
· Green power UPS,
. A/C-A/C Efficiency 96%.
· Very wide input voltage range
. Unity Output PF
· Parallel up to 4 units ( 6 & 10 KW)
· L – models for long back up time
Input Data
Input voltage 208/220/230/240VAC
Input Voltage range 120 - 276 VAC Single phase + GND.
175 – 276 VAC @ 100% Load
120 – 276 VAC @ 50% Load
THDi < 3% @ full linear load
Input Power Factor ≥ 0.99 (full load)
Input Frequency Range 45 - 55Hz / 54-66Hz.
Battery Data
- 12 VDC 7Ah & 9Ah VRLA
- No of Blocks (7, 9Ah 12 Volts) 2,3,6,16 ,18,20
- DC Voltage 24, 36, 72 ,96, 108, 120 VDC
- Charger
- Boost Charge or float charge auto switch
- Floating Charging voltage 13.6 / block
- Charging current (max) 10.0A ( 6 & 10 Kwatts)
- Battery Charging characteristics IV characteristics
Output Data
-Output Power:1,2,3,6 &10 Kwatts
- Waveform Pure sine wave
- Output voltage 208/220/230/240VAC
- Voltage regulation ± 1 %
- Voltage distortion THD < 2% linear load.
