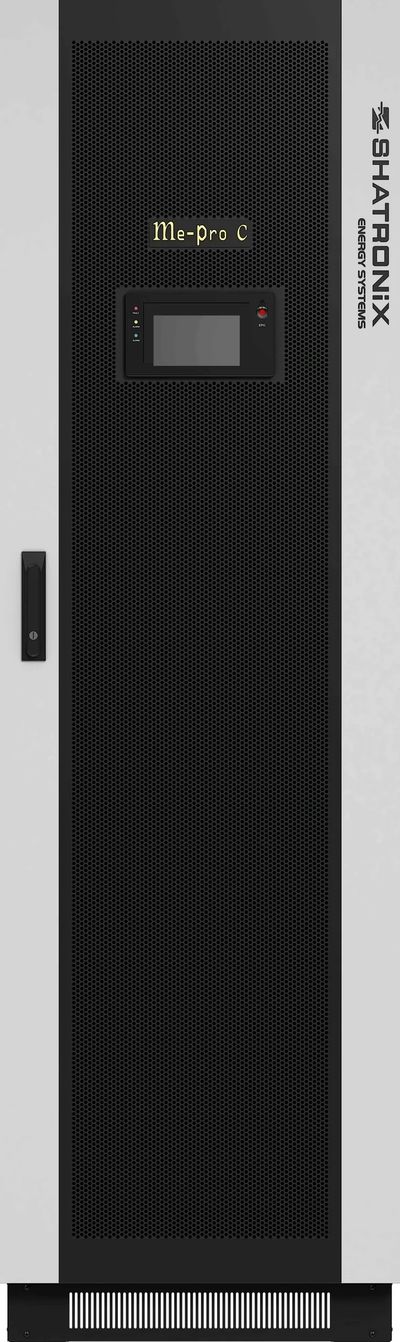

Me-PRO C Three phase 10 - 4800 Kwatts Modular UPS

Description

Me Pro C is a Three Phase modular Scalable UPS system, designed according to state of the art 3 level technology,

Modules ratings:

                   10 - 15 - 20 - 25 - 30 - 50 & 100 Kwatts.

Frames Power range:

                   30 Kwatts in N+2 Redundant configuration up to 1200 Kwatts

Frames can be connected in Parallel to provide redundancy or to increase Output power to provide total of 4800 Kwatts.

Features

·  Up to 97% system efficiency

·  Up to >=99% efficiency in Eco-mode

·  Unity Output Power Factor 1.0, KVA = Kwatts

·  Input Power factor > 99%

·  Wide Input Voltage Range, 310 – 480 VAC

·  Back feed Protection.

·  Adjustable Battery Voltage (36 - 50 blocks)

·  Energy savings with the ntelligent Sleeping Mode.

·  Common Battery

·  Superior MTBF & MTTR

·  Remote Monitoring and Connectivity Options

·  Low TCO, ( Total Cost of Ownership)

- Highest Power Density approximate 800KW/M2

- Installation directly against the wall

- Front Access only.

- Top Cable Entry Kit (Option)

- Automatic Battery Test

Features: 50-100 Kw modules

·  Mains Share Mode.

·  Energy Storage Mode

·  Re Circuiting Output power to input

-  Supports VRLA and LFP Batteries

-  Multiple Input Source (option)

-  Standard LBS mode



Hot-Swappable Modules:

-  UPS Modules

-  Bypass Module

-  Energy Control Module

-  Monitor I/O Module

- Battery racks in small & medium Frames

Technical Data

OUTPUT

Rated voltage  380/400/415Vac,   (3Ph+N+PE)

Power factor  1

Voltage regulation   ±1%

Output   frequency 50 / 60 Hz : ±10% with mains

                              (50/60±0.1%)   Hz Batt mode

Crest factor             3:1

Harmonic distortion (THD)

                               ≤1% with   linear load
                              ≤3% with nonlinear load

Efficiency     Mains up to 97%

                    Eco Mode =   99%

INPUT

Nominal voltage            380/400/415Vac,   (3Ph+N+PE)

Voltage range               140~310 VAC   for 40% Load;

                                     310~480VAC for 100% Load;

frequency range            40Hz-70Hz

Power factor                   ≥0.99

Harmonic distortion (THDi)  : ≤ 3% (100% Load)

Bypass voltage range   Max.  : 220V: +25%

                                              : 230V: +20%

                                              : 240V: +15%
                                   Min.   : -45%

Bypass Frequency range        : ±10%


Standards

Safety :  IEC/EN62040-1,   IEC/EN60950-1


EMC   :  IEC/EN62040-3,   IEC61000-4-2, IEC61000-4-3, IEC61000-4-4,

              IEC61000-4-5, IEC61000-4-6, IEC61000-4-8
